HH-9042

Product Detail

Basic Info.

Model NO.
HH-9042
Installation
Wall Mounted
Style
European Style
Certification
CE, CB, SASO, GS
Colour
Black
Suction Power
1200m/3h
Motor
Pure Copper Motor
Warranty
5 Years
Lamp
1.5W*2 LED Lamp
Fitter
Twin Baffle Filter
Switch
Touch Control with Motion Sensor
Function
Auto Clean Optional
Material of Chimney
Glass & Stainless Steel
Finish Chimney
Stainless Steel
Motor Housing
Metal
Operation Mode
Exhaust Mode
Voltage (V)
220V
Frequency (Hz)
50 -60 Hz
Number of Motors
1
Transport Package
Carton
Specification
900mm
Trademark
Doublemax
Origin
China
HS Code
841460
Production Capacity
20000/Year

Product Description

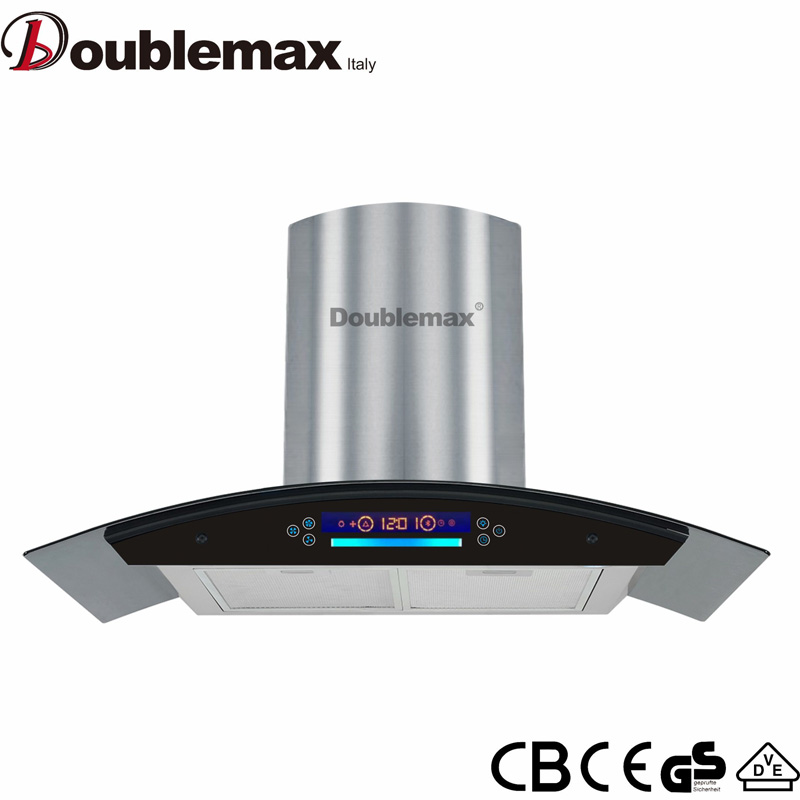

European Style  curved  temperred glass 900mm cooker hood /range Hood


European Style Curved Temperred Glass 900mm Cooker Hood, Range Hood








The curved glass range hood is Auto clean chimney is designed to suit the aesthetics of your modern kitchen. It comes with 2 Slanting baffle filter for draining the oil properly. The 230W powerful motor ensures that you get a powerful suction. Motor comes with a 5 year warranty. The touch controls with motion sensor are easy to operate. The 1200 m3/h suction throws away smoke from pans to outdoors and ensures that your kitchen is odor free and the walls are clean of any grime. It has 2 environment friendly LED lights to brighten up the cooking area.




Product TypeControlFan SpeedGrease filter(s)Lamp Type
Range hoodTouch+handsensor3  2*SS2*1.5W LED

Max noise level (dBA)Illumination power (W)Max wind pressure  (Pa)Max extraction rate (m3/h)Motor rating (W)
 ≤57       2×1.5         ≥280         1200         1200

Smoke Sensor  Heat sensorRemote ControlBluetooth ControlDucting Pipe Diameter (mm)
     Optional       Optional        Optional          N/A          150





Range hood Description 1

The motor house design use archimedean spiral and hydrodynamics theory improved the wind pressure and volume with the low noise.

1.Noise reduction rate 13.5% at the same wind volume

2.Flow improvement 21.1% with the same noise

3.Pressure boost 17.8% with the same noise

4.The motor have 2 type:model A is totally-enclosed type,the model B is open type. same to ball bearing,  28-35 copper coils .

Wear-resistance, anti-overheating  and over 100000 hours lifespa

-Safety: low temperatue rise less than 30K.

- Large Air delivery:the suction power can be arrival at 1200(m3/h)

- Wide voltage option: Performance keep the same voltage form 160 to 270V and frequeny from 45Hz to 60Hz.

- Environment-friendly: less energy consuption (on 50% o normal motor) and less copper wires used on BLDC motors.

- Low loss high efficiency: motor efficiency at around 70%, saving energy 50% on high speed and 80-90% on low speed.




European Style Curved Temperred Glass 900mm Cooker Hood, Range Hood

Range hood Description 2

Central axis of Impellor and motor  design guarantees the steady operation

Double inlets motor house design

Organic silicon painted surface, heat -resistant  and anti-corrosion

European Style Curved Temperred Glass 900mm Cooker Hood, Range Hood




Range hood Description 3

a1.)2*1.5W LED Lamp

a2.)ECO friendly power saving LED lights

a3.)The cleaning of the carbon filters should be based on the instruction manual of the rang hood.
European Style Curved Temperred Glass 900mm Cooker Hood, Range Hood

Range hood quality control



1)Our products range hood  have achieved CE approval

2)Every product range hood will be tested in  the factory line before packed

3)Sample of gas range hood can be offered for you inspection

4)Carton packaging, built-in batten, ensure products in good transportation to your port
European Style Curved Temperred Glass 900mm Cooker Hood, Range Hood




Range hood certificate



Range hood have CE certificate,SASO,COC,CCC,CB,can be optional.
The gas stove with CE certificate.
The range hood with CE,CB certificate already.


European Style Curved Temperred Glass 900mm Cooker Hood, Range Hood




Range hood packing&shipping




Delivery time
1.Sample after confirm drawing 7days
2.Mass production after 30% deposit 25-30 days


Loading quantity
Big body structure
1.20GP:145pcs
2.40GP:246pcs
3.40HQ:350pcs

Small body structure
1.20GP:466pcs
2.40GP:860pcs
3.40HQ:1050pcs



          Model

Range hood Dismension
Body Size(mm)Packing Size(mm)Loading quantity(40HQ)
Cambered glass range hood890×505×850920*535*285350
Side draft range hood 900*505*950945*445*590280
T-shape range hood 900*505*950975*600*420*525170
Slim range hood900*760*290937*172*525800
Island range hood900*760*290945*445*590320



Our service


1.1 year warranty for finish products

2.The motor have 5 years warranty.

3.1%-2%Spare Parts based on the order

4.OEM & ODM are welcome

5.CkD anfd SKD are available.

6.Tried orders are available

7.Sample of range hood can be supplied in 7days

8.Support product training

During the warrnty years once there is some spares parts are needed, we will send the spare parts of the range hood to you by air.
